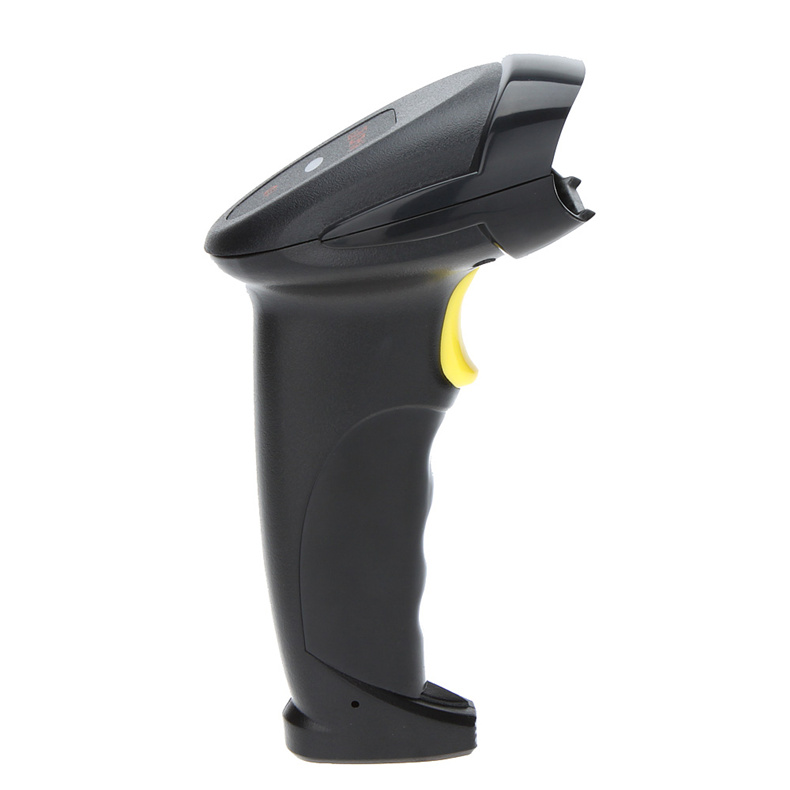

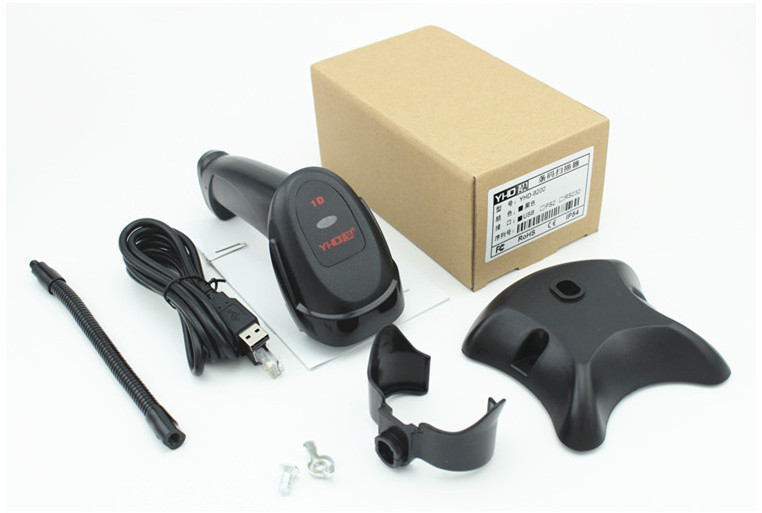

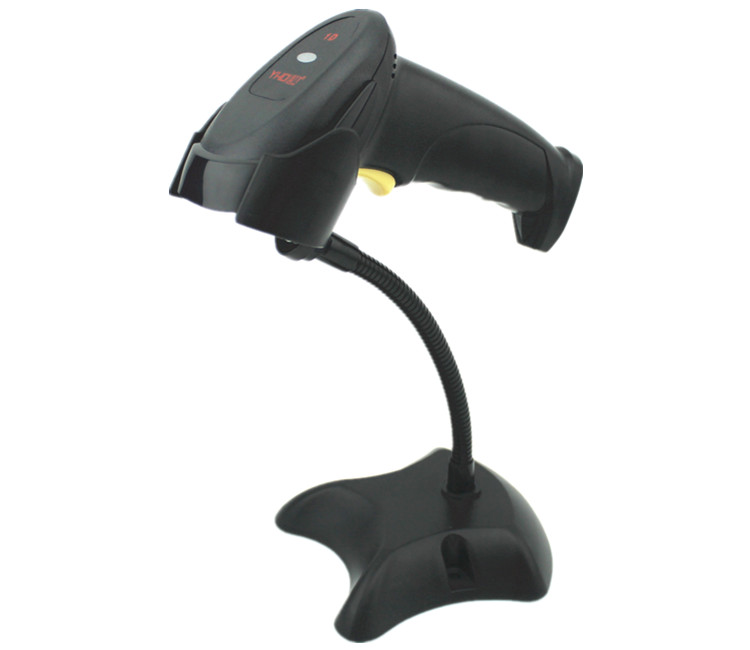

YHD 8200 1D Handheld Laser Barcode Scanner with Stand

  • ₱1,600.00


Features:

  • Support RS232、USB and KB Interface
  • Hard-Coating tempered glass exit window
  • 650 nm laser aiming poinmake the scanning result much more accurate
  • Read 3.3mil bar code easily
  • Support remote device updating .
  • Switching from handheld to auto sense mode.

TB2Rj2flOpnpuFjSZFIXXXh2VXa_!!2560455065





Technical parameters

ProductSpecification: YHD-8200 1D wired Laser Barcode Scanner

Technical parameter

Light source

650 (visible laser)

scan model

single line Bi-directional

scan speed

300 scans/sec

resolution

4mil

width of scan

5-30cm

depth of scan

2-50cm

Scan angles

Roll30°、Pitch75°、Yaw65°

decode capacity

Code39、Code 39Full ASCII、Code128Full 、ASCII、Codabar、Interleaved 2 of 5、Code93、MSI、Code11、ISBN、ISSN、china post code、UPC/EAN、UPC/EAN(include complement code)、Code128、UCC/EAN128、etc

interface

USB

print contrast

30% minimum

bit error rate

1/5 million

prompt

buzzer indicator

scan model

handheld / continuous scanning

weight

0.24kg

material

ABS+PC

cable standard

Straight:1.8m

Electrical parameter

Power supply

DC 5V±5%

current

Working: 50mA standby: 30mA

laser security

Accord with national level1 laser security standards

Environment parameter

temperature

Working: 0℃-50℃ Storage :0℃-50℃

humidity

Operating and Storage humidity 20%-85% (non-condensing)

environment Luminance

Max.5,000 Lux ( flsorescence)

anti-knock

1.5m fall to cement

Certificate:

CE,FCC,RoHS ,IP54

TB24YjmlNhmpuFjSZFyXXcLdFXa_!!2560455065TB2QkNxepXXXXbXXpXXXXXXXXXX_!!2560455065TB2Zx4zepXXXXayXpXXXXXXXXXX_!!2560455065
QQ20171121192334_TB2Y1bFlNlmpuFjSZPfXXc9iXXa_!!2560455065TB2x3LaieKAUKJjSZFzXXXdQFXa_!!2560455065
