Overview

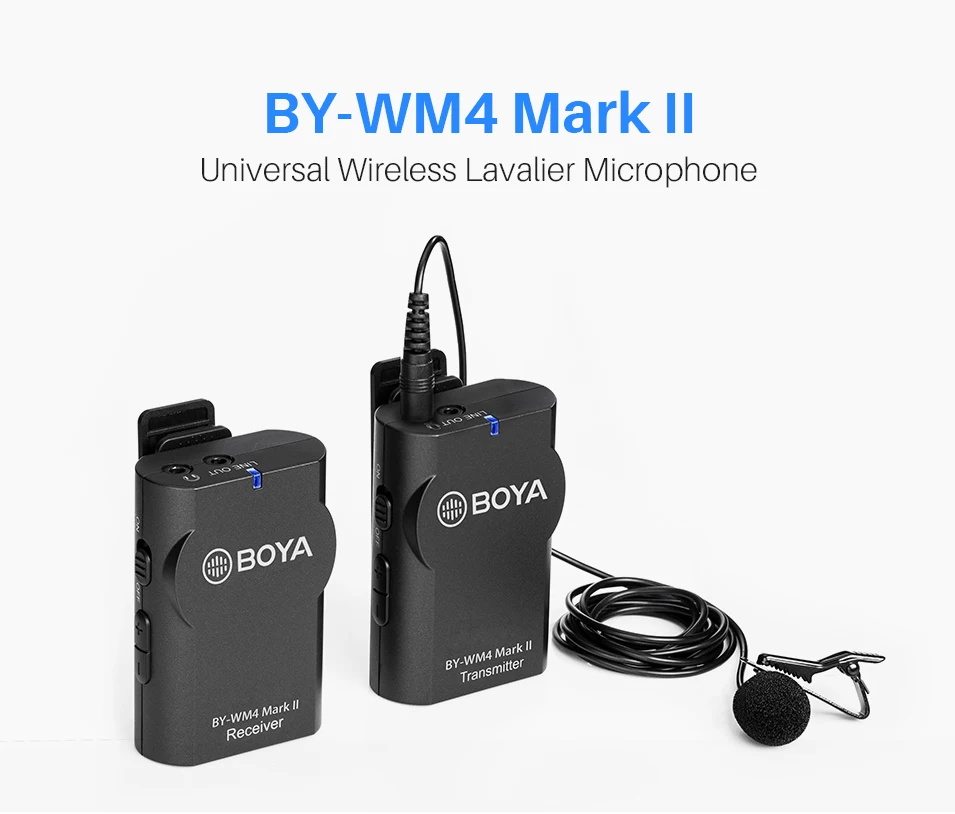

The BOYA BY-WM4 pro ii is a compact wireless microphone with real-time monitor, designed for reliable and trouble-free performance.

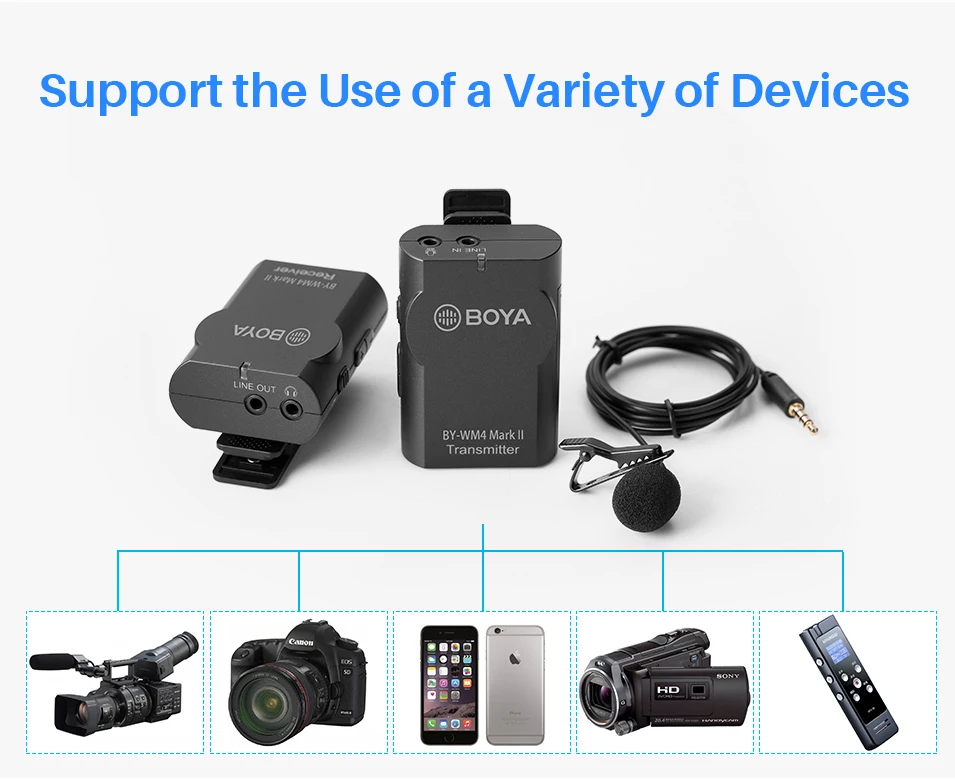

It can work with Smartphone, Tablet, DSLR camera, Camcorder, Audio recorder, PC and others audio/video devices.
Feature
- Clear recording sound
- Compatiable with smartphones, DSLR cameras, Consumer Camcorders, PCs etc.
- Light and compact for easy carrying
- Omnidirectional lavalier microphone
- Hard case included
- Standard camera shoe mount and clip included
- Up to 15m (82ft) operation range
- Power Supplied by two AA batteries
Specifications
- RF Modulation: GFSK (Gauss frequency Shift Keying)
- Frequency band: 2.4GHz (2405-2478MHz)
- Frequency response: 35Hz-14KHz±3dB
- Signal/Noise: 76dB or more
- Distortion: 0.1% or less (32Ω,1 KHz,65mW output)
- RF output level:2 mW
- Earphone output level: 32Ω,65mW
- Reception sensitivity: -85dB +/- 3dB / 0dB=1V/Pa, 1kHz
- Audio input connector: 3.5mm mini jack

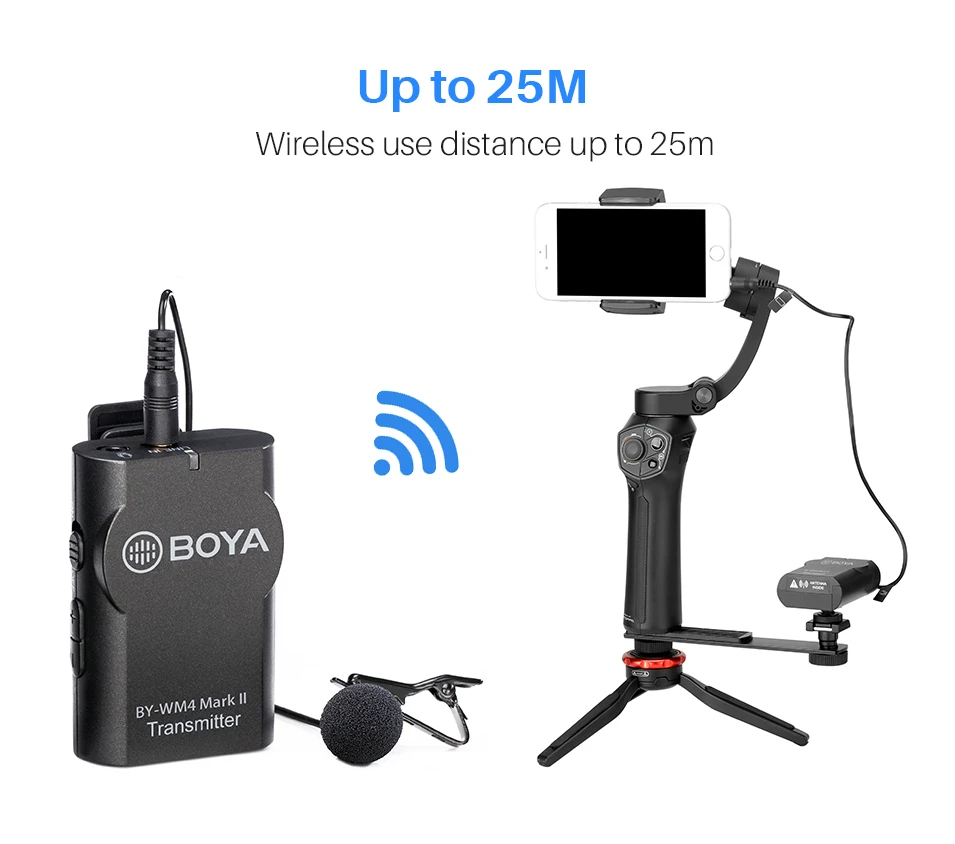

- Operation range: 25m (80ft.)
- Power requirements: 1.5V DC (One AA size battery)
- Consumption power: Transmitter: 1.5V/120 mA / Receiver: 1.5V/120 mA
- Battery life: Transmitter: Approx. 3.0 hours / Receiver: Approx. 3 hours
Dimensions:
- Transmitter: 60mm x 86mm x28mm (W/H/D)
- Receiver:60mm x 86mm x41mm (W/H/D)
Weight:
- Transmitter: 136g (4.37oz) (Without battery)
- Receiver:152g (4.89oz) (Without battery)

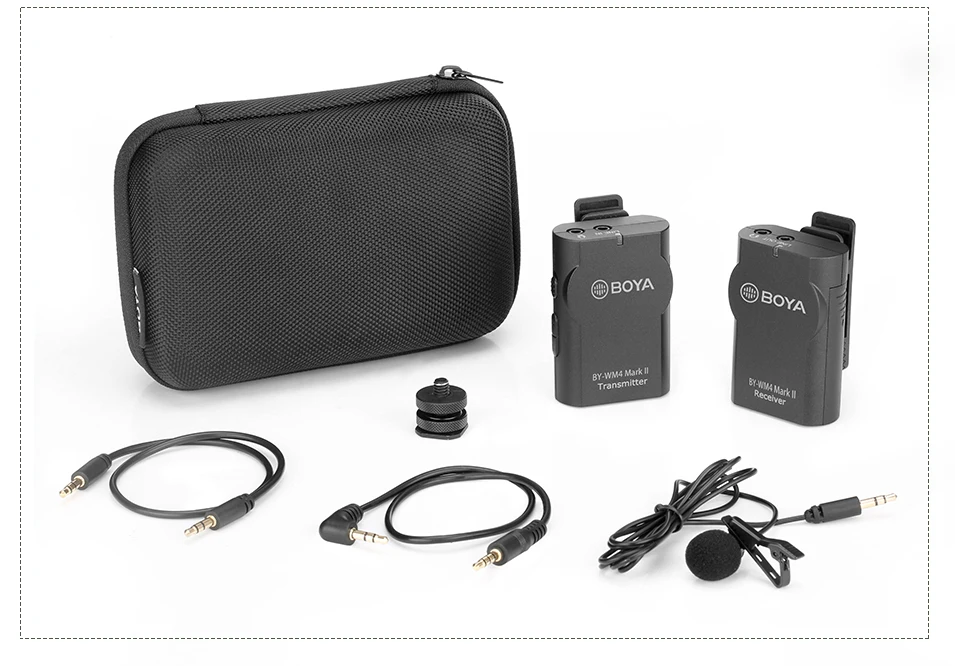

Boya BY-WM4 pro ii:
- Transmitter
- Receiver
- Lavalier microphone

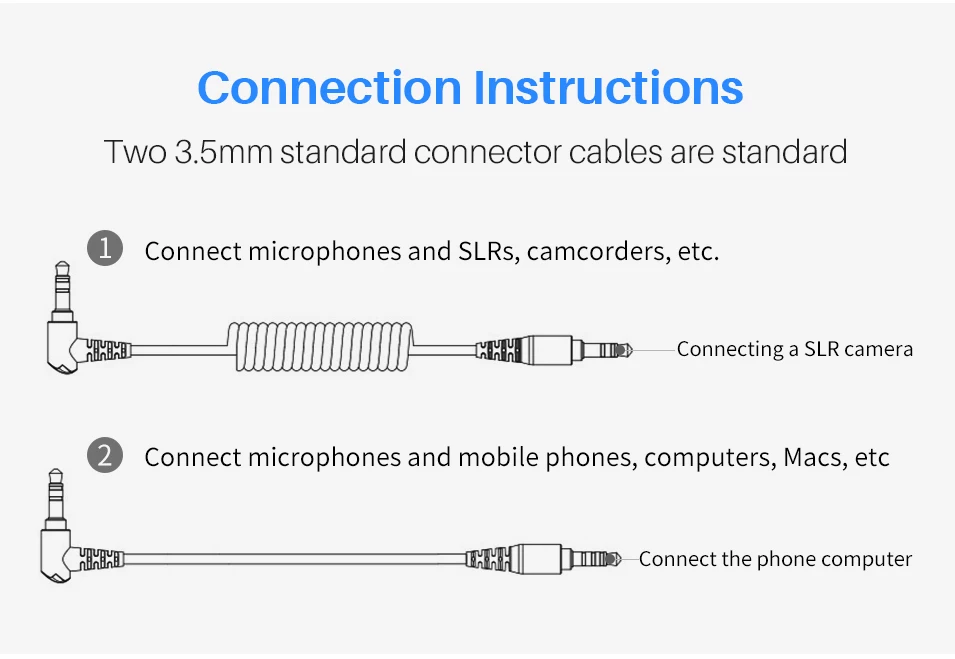

- 3.5mm to TRS audio output cable
- 3.5mm to TRRS audio output cable
- Cold-shoe mount
- Hard case
- User Guide
- Manufactory Original Package
